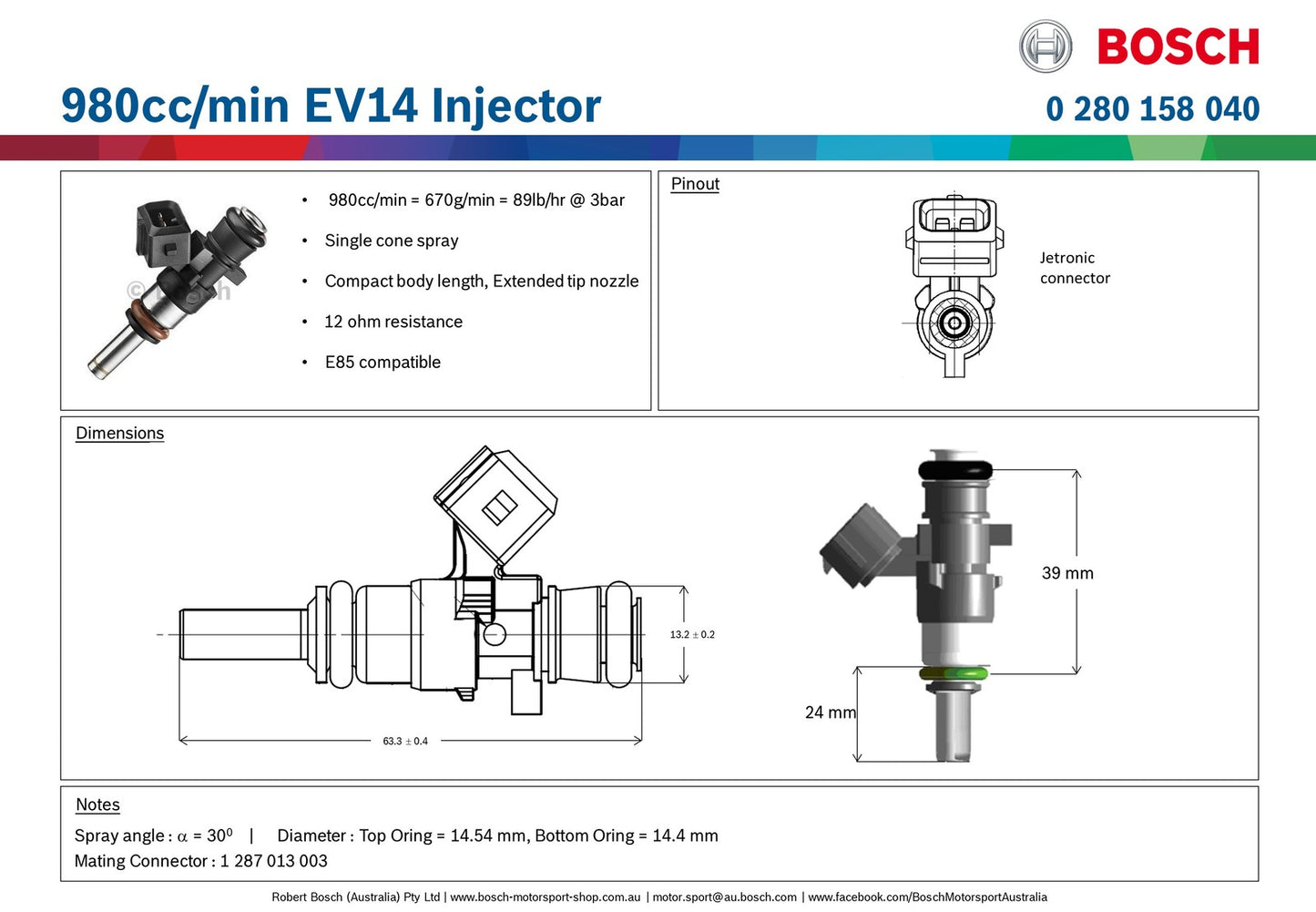

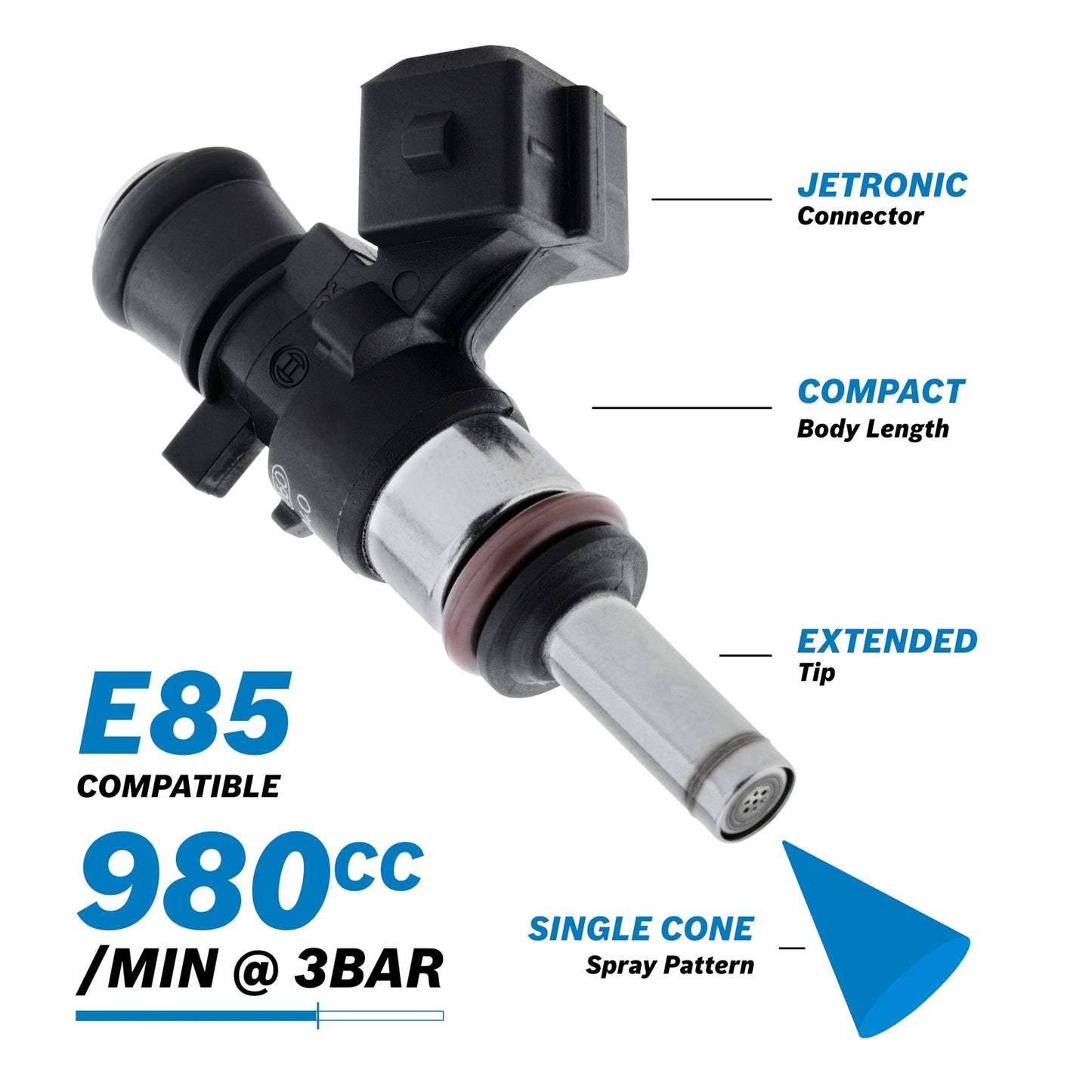

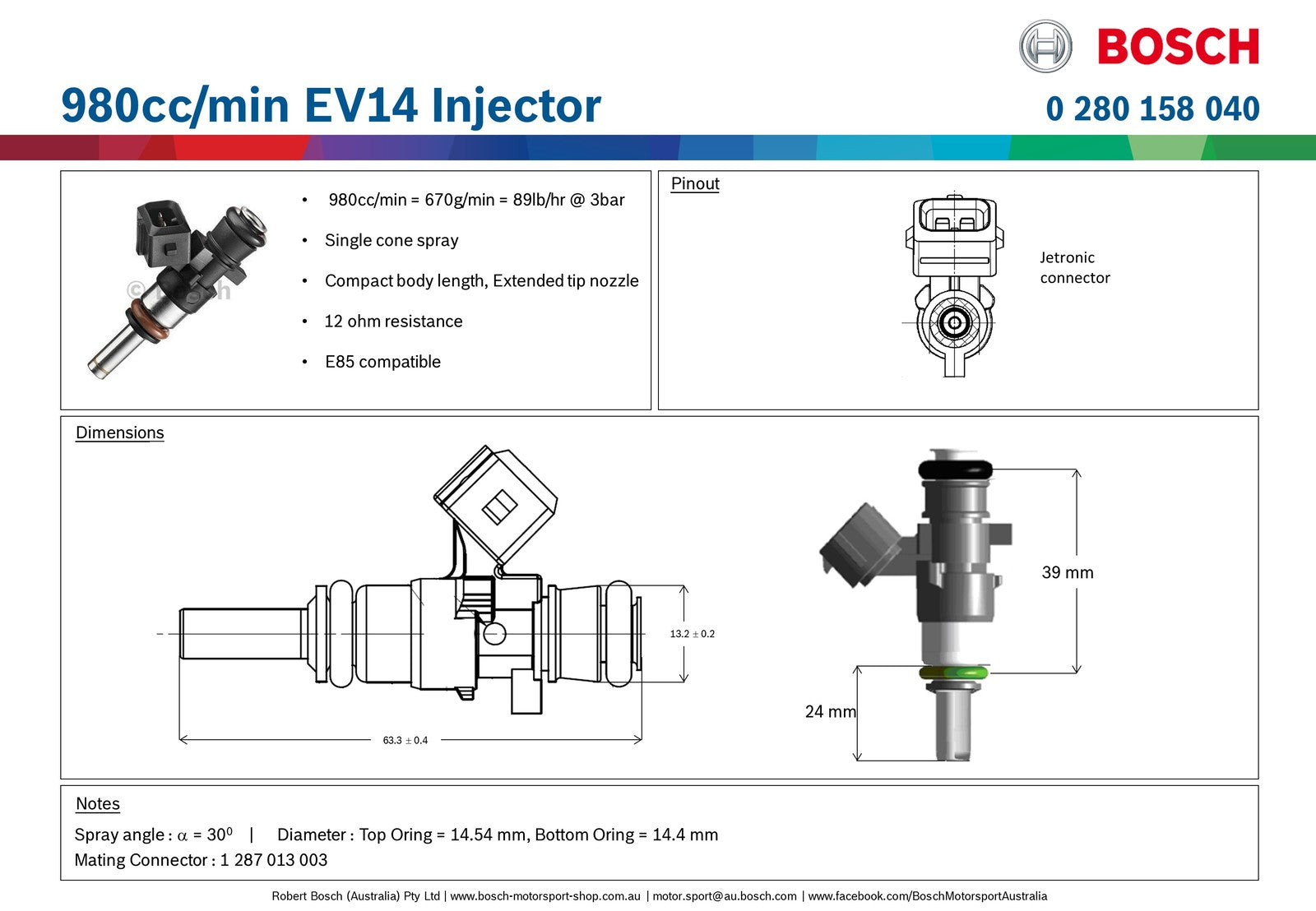

| Volume |
980cc/min = 670g/min = 89lb/hr @ 3bar |

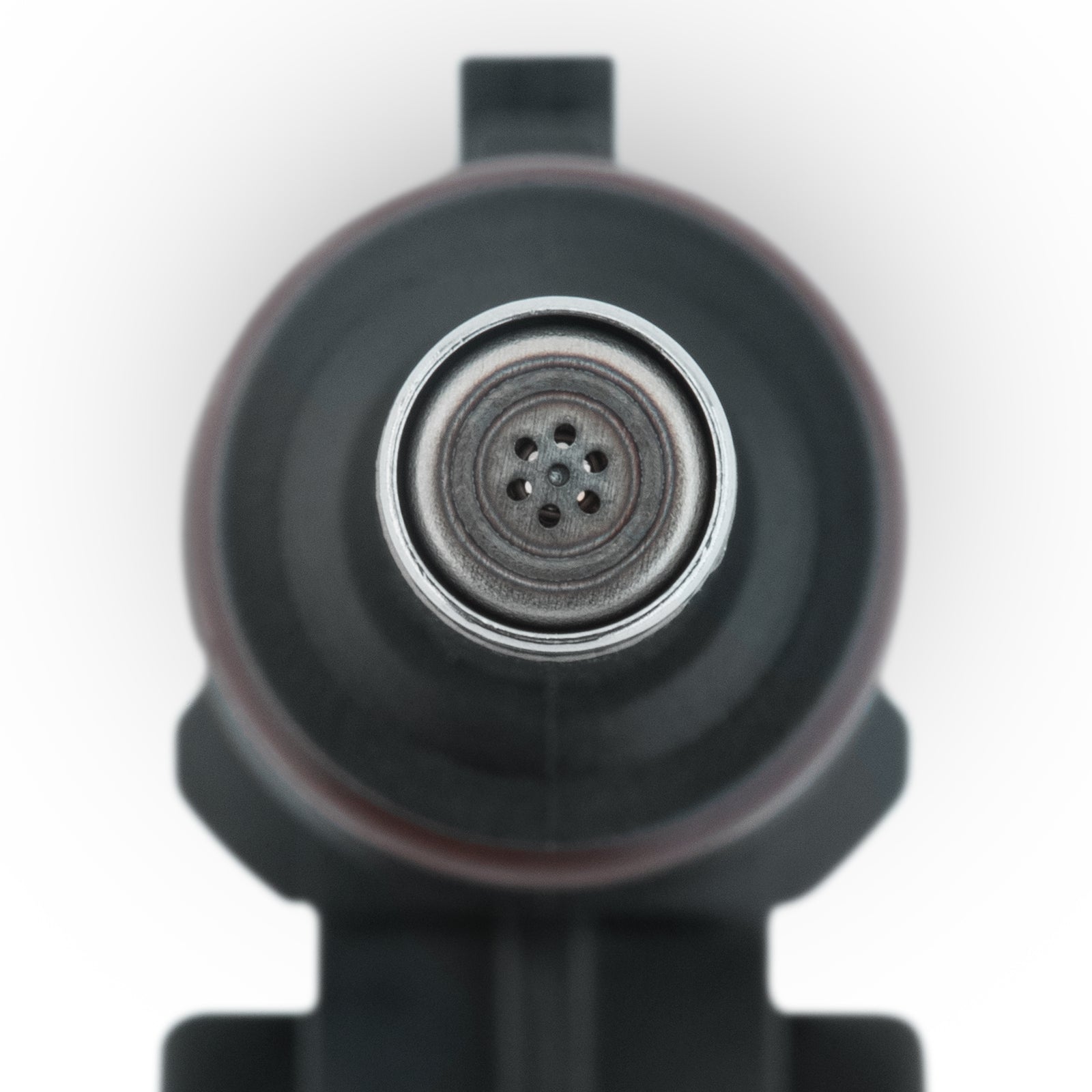

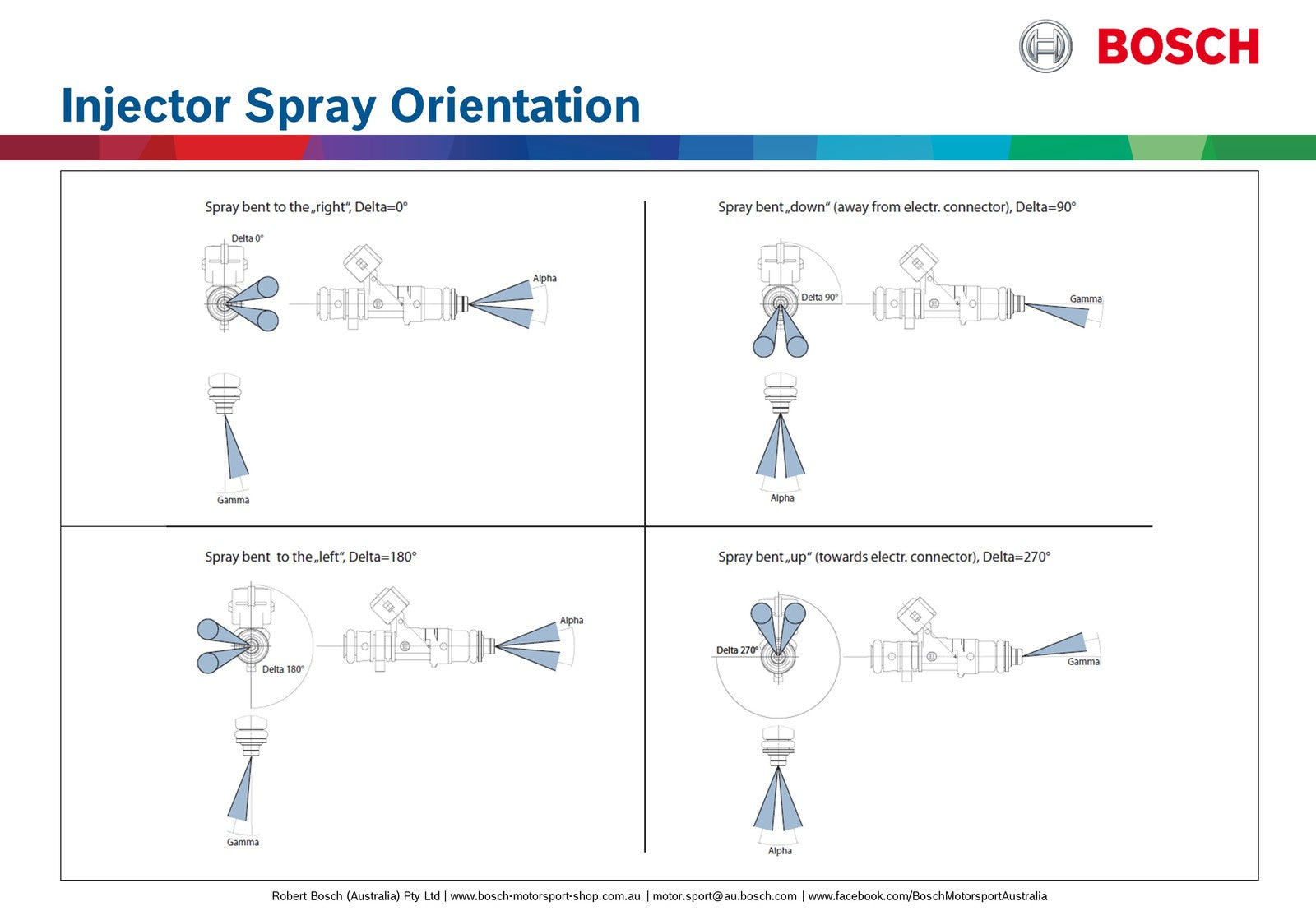

| Spray pattern |
Single Cone |
| Body Length |
Compact |
| Nozzle |
Extended Tip |
| Resistance |
12 ohm |

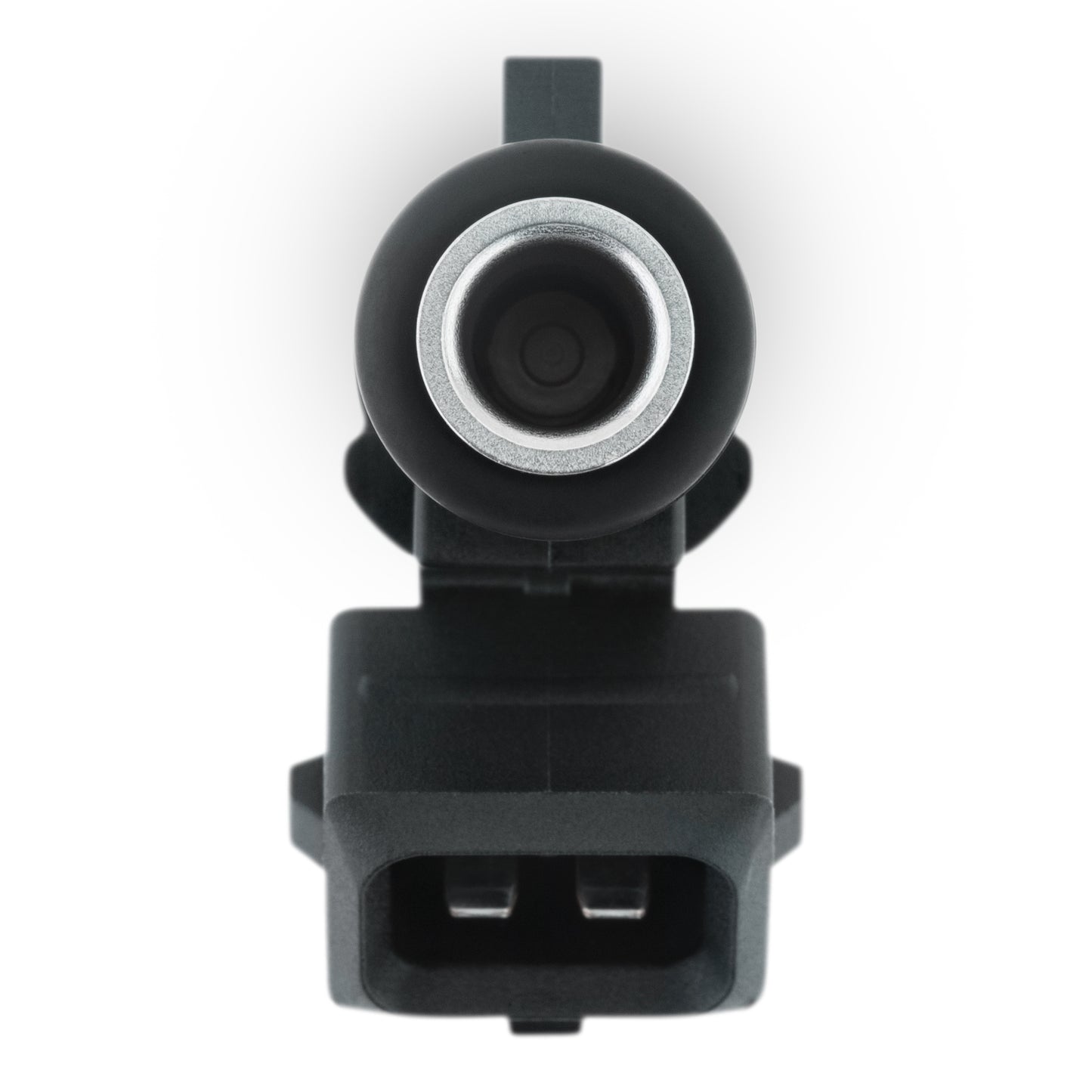

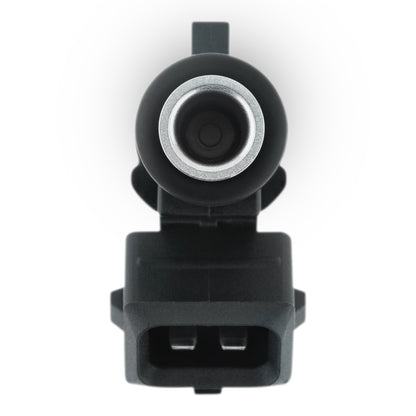

| Connector |
Jetronic |
| E85 Compatible |
Yes |
- Bosch Motronic brought electronic fuel injection to Formula One in 1982 and the technology established itself quickly, powering the 1983 world champion to victory.
- Today, Bosch fuel injection technology sets the standard in professional motorsport around the world. All Bosch Motorsport injectors are manufactured to the exacting standards of an Original Equipment Manufacturer (OEM).
- EV 14 injection valves are the latest revision of the EV 6 injection valve technology.
- Bosch EV14 high precision injector internals are validated for use with E85 fuel.
- Bosch Motorsport has a comprehensive range of fuel injectors to suit almost any application. Size your injectors correctly for your goals to optimize drivability, efficiency and power.
