MoTec 15 Button Keypad

MoTec 15 Button Keypad

$796.00 NZD
$796.00 NZD
Sale Sold out
Shipping calculated at checkout.

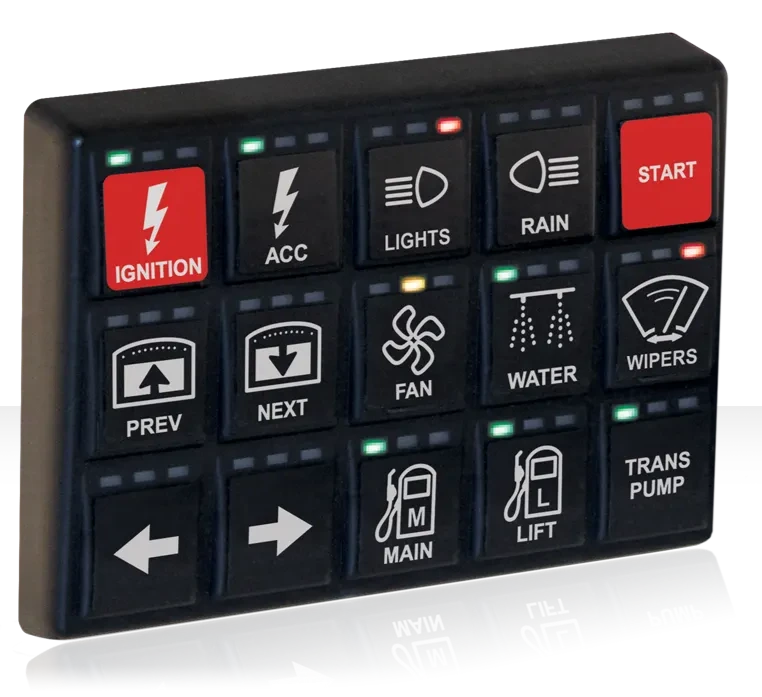

MoTeC's multi-button backlit CAN Keypads provide a switching solution that can be customised and connected to any MoTeC PDM.

The buttons can be used as inputs to control the PDM and other devices in the vehicle. The three LED lights along the top of each button can be used to indicate the state of the devices.

Four separate Keypads, each with up to 15 keys, can be combined on a single CAN bus and controlled by the same PDM (factory configuration required).

Features
  • Small, lightweight and compact package
  • Rugged design – vibration, and impact resistant for use in extreme environments
  • Dust and water resistant - sealed to IP67
  • Dimmable LED indicators above each button for real-time feedback
  • Backlit buttons
  • Pre-designed semi-transparent labels supplied
  • Supports multiple key press combinations
  • Simplified wiring - only 4 wires required for multiple buttons
  • Short circuit and reverse polarity protection

Specifications

Configuration
  • All configuration is done via PDM Manager software:
    • CAN addressing, function, backlight brightness, status LEDs etc.
Communications
  • Single CAN bus
Capacity on CAN Bus
  • Up to 4 Keypads, with up to fifteen keys each
Advise your dealer if multiple Keypads are required on the same CAN bus. Use of multiple Keypads will require the units to be pre-configured before supply.
LED Status Lights
  • Colours: green, orange, red
Power
  • Operating voltage: 8 to 32 V DC
  • Operating current: 0.2 A maximum
  • Reverse battery protection
  • Short circuit protection
Ambient Operating Temperature
  • -40 °C to 85 °C
Physical
  • 1 x 4 pin Deutsch DT connector
  • Size (without connector): 129.54 x 89.46 x 15.74 mm
  • Weight: 175
