MoTec D175

MoTec D175

$3,172.00 NZD
$3,172.00 NZD
Sale Sold out
Shipping calculated at checkout.

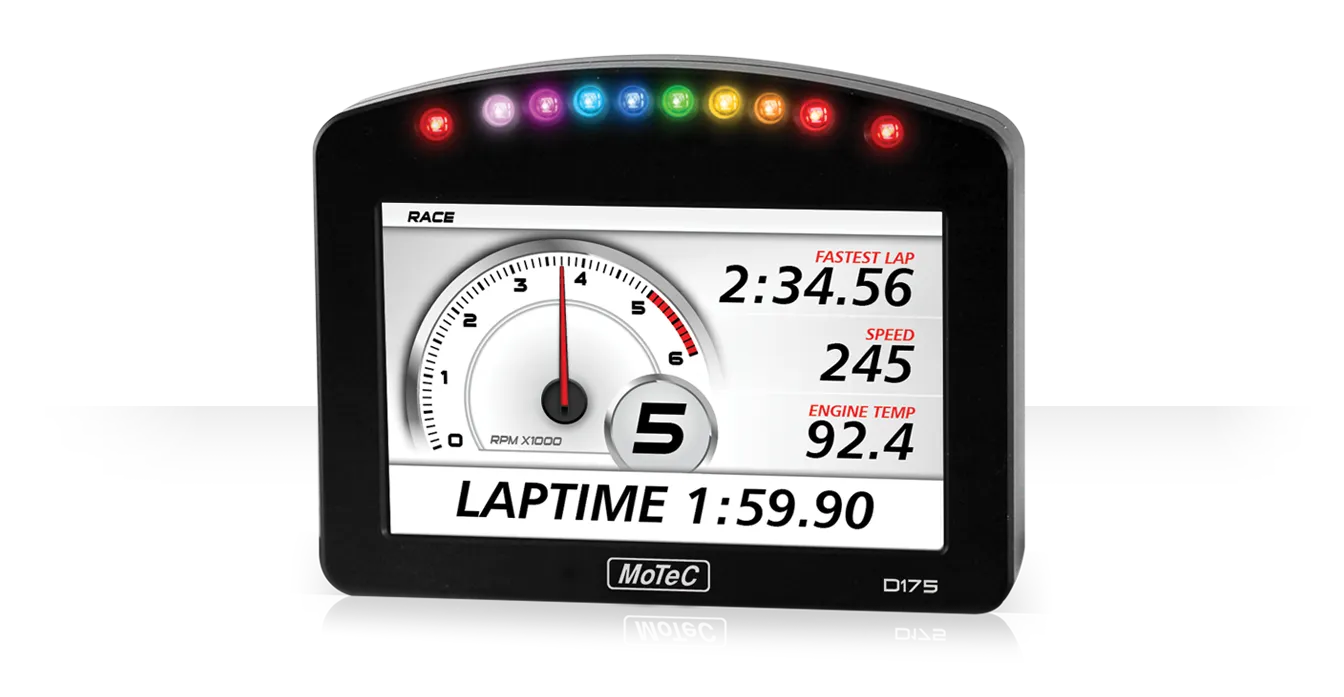

The D175 Display is part of MoTeC's D1 Series. This configurable and high brightness colour display is readable in direct sunlight and includes an integrated LED array; it is used with M1 ECUs and Dash/Enclosed Loggers.

Selectable fixed display layouts offer multiple style options or use Display Creator software for full screen customisation.

  • High resolution colour LCD display
  • Display size 125mm (5" approx)
  • High brightness for sunlight readability
  • 10 full colour (RGB) LEDs; colour, function and intensity are fully programmable
  • 8 analogue inputs
  • Autosport connector
  • Receives data from M1 ECUs and Dash/Enclosed Loggers via CAN
  • Sends input data to other devices via CAN

SPECIFICATIONS
Analogue inputs
  • Amount: 8 (can be used for switches or potentiometers)
  • Measurement range: 0V to 4V
  • Maximum operating voltage: 17V *
  • Maximum protected voltage: 32V
  • Input equivalent: 10kΩ to 4.0V

* Above this voltage other inputs may be affected.

Power supply
  • Operating voltage: 6.5V to 32V
  • Operating current: 380mA (typical) at 14V, full brightness
  • Reverse battery protected
Communications
  • CAN 1 Mbit/sec
Display
  • Type: TFT LCD, anti-reflective
  • Resolution: 600 x 480, anti-aliased graphics
  • Brightness: controlled via CAN message, 100 steps
  • Display Creator software provides the tools for full screen customisation
  • Selectable fixed layouts.
LED array
  • 10 RGB LEDs
  • Colour, function and intensity are fully programmable.
Operating temperature
  • Internal: -20°C to 70°C (above 60°C maximum backlight brightness progressively reduced)
  • Typical maximum ambient temperature in free air: 55°C
Physical
  • Weight: 320gms (excluding wiring)
  • Anodised aluminium housing
