MoTec CDL3

MoTec CDL3

$2,739.85 NZD
$2,739.85 NZD
Sale Sold out
Shipping calculated at checkout.

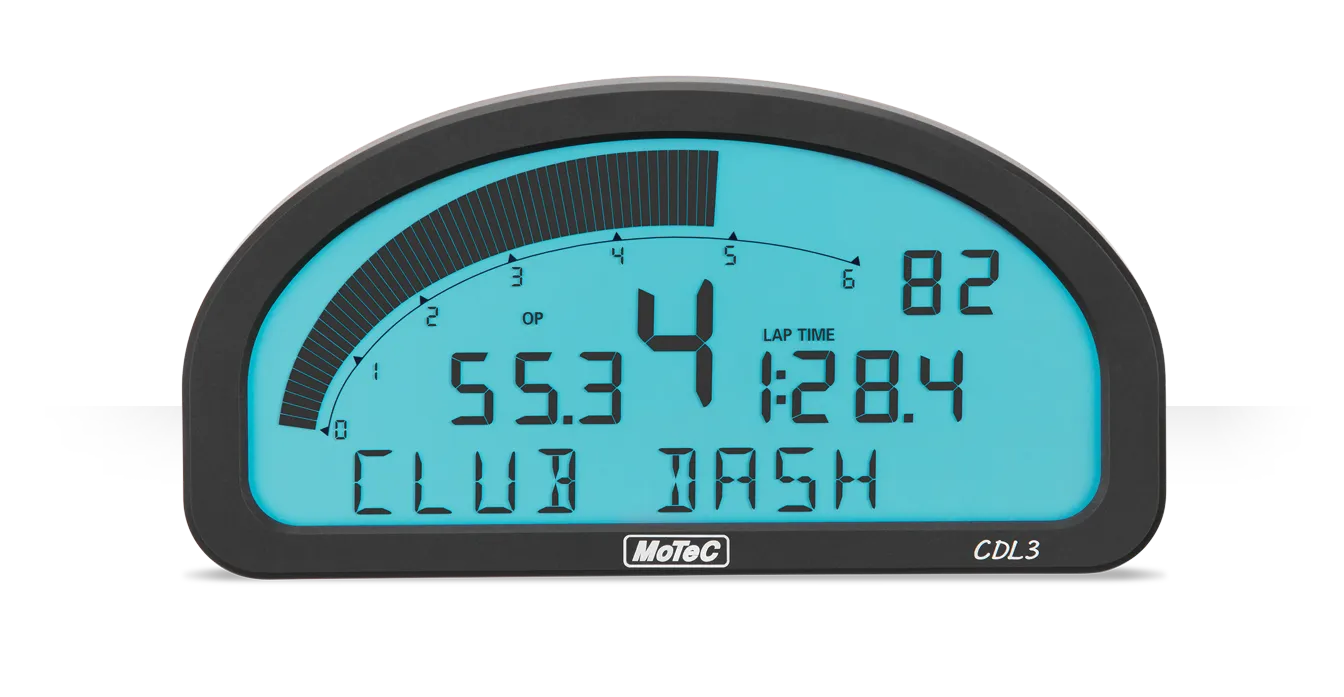

The Club Dash Logger (CDL3) comes standard as a combined backlit display and powerful control device in one lightweight unit. With the addition of the Data Logging upgrade it becomes a fully programmable data logger with 8 MB memory.

It offers the same construction and advanced technology as the top of the line ADL3, with a package of features tailored to entry level motorsport requirements.

The screen layout is fully configurable to display a multitude of data channels, warning alarms, lap times, fuel calculations, minimum corner speeds, maximum straight speeds and more.

The CDL3 performs calculations, acquiring data from other devices such as an ECU.

  • All-in-one display, logger and controller (logging and I/O optional)
  • Suitable for bikes, cars, marine and industrial applications
  • Compact, durable and reliable unit
  • Supports Wideband Lambda from MoTeC PLMs or LTCs
  • Easily integrates with MoTeC CAN-based expanders, GPS, shift lights and ECUs
  • Alarm acknowledge, mode, page and scroll line buttons
  • 2 stage brightness control input
  • SLM / SLM-C for shift and warning light

SPECIFICATIONS
Display
    • 70 segment bar graph
    • 13 digit alphanumeric text bar
    • 48 user-defined, scrollable message lines with programmable overrides
    • 3 programmable 'pages' for Practice, Warm-Up and Race
    • Adjustable backlight
    Logging - optional
    • 8 MB logging memory
    • Logging rates up to 500 samples per second
    • Fast Ethernet download
    Inputs - optional
    • 4 x Analogue voltage high resolution inputs
    • 2 x Analogue temperature inputs
    • 2 x Digital inputs
    • 3 x Speed inputs
    • Compatible with E888 expander (8 thermocouples only)
    Outputs - optional
    • 4 x PWM, switched or digital outputs
    Internal Sensors
    • 3-axis accelerometer, detection range: +/- 5G
    • Dash temperature sensor
    • Sensor supply voltage
    • Battery voltage
    Communications
    • 2 x configurable CAN or RS232 bus with individually programmable CAN bus speeds
    • 1 dedicated RS232
    Physical
    • Dimensions 180 x 91 x 18 mm excluding connector
    • Weight 385 g
    • 1 x 34 pin AMP connector
