MoTec C187

MoTec C187

$6,131.88 NZD
$6,131.88 NZD
Sale Sold out
Shipping calculated at checkout.

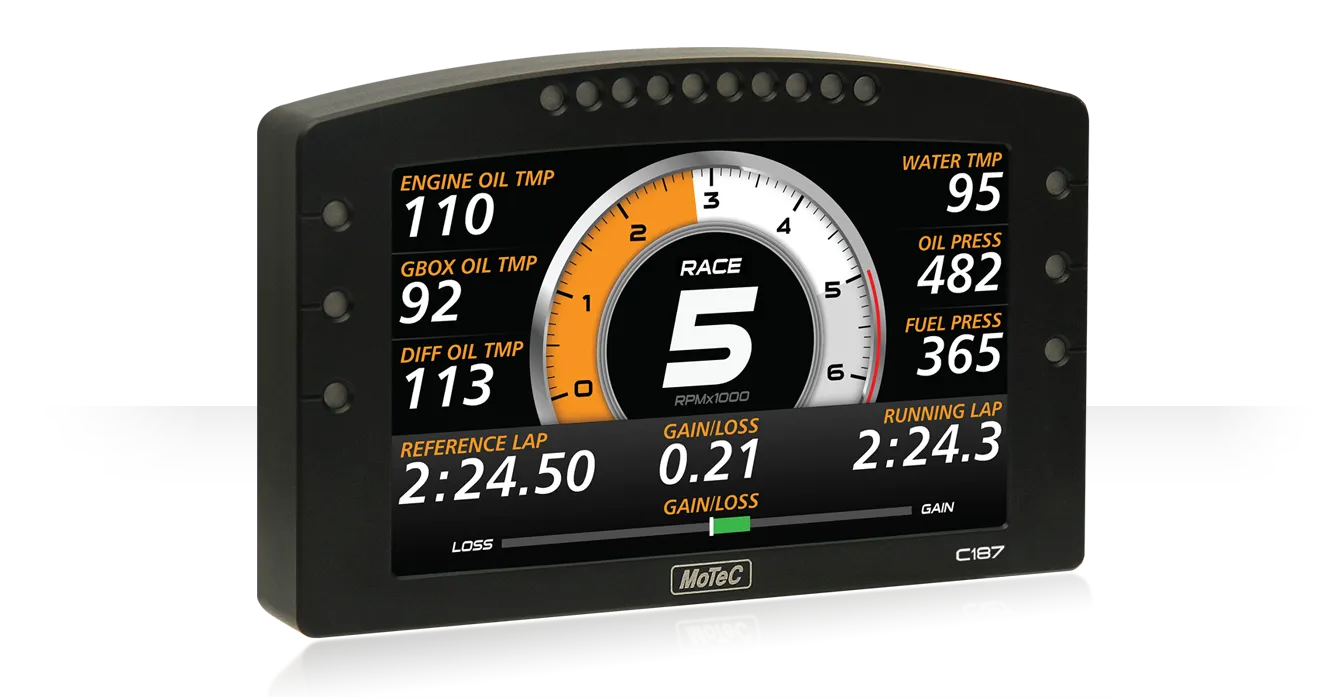

The C187 comes standard as a combined 7" full colour display and powerful control device and fully programmable data logger with 250 MB internal memory. Optional USB Logging provides additional data capacity and flexibility, and also upgrades the internal memory to 500MB.

The anti-reflective, high contrast display is clear and vibrant in direct sunlight. Numerous supplied display layouts offer fixed graphics with configurable channels and labels.The optional Display Creator software provides the tools for full screen customisation.

The C187 aquires data from other devices, such as an ECU, displaying data channels, warning alarms, lap times, fuel calculations, maths functions and more.

  • Impressive High Resolution 178 mm (approx. 7") colour LCD display
  • High brightness for sunlight readability
  • Optional USB logging (includes 500 MB Internal Logging)
  • 16 full colour (RGB) LED's; colour, function and intensity are fully programmable
  • Suitable for cars, marine and industrial applicationsSuitable for cars, marine and industrial applications
  • Supports Wideband Lambda from MoTeC PLMs or LTCs
  • Easily integrates with MoTeC CAN based devices such as ECUs and expanders. Full I/O expansion with E888 and E816
  • GPS Lap Timing
  • Tell Tales
  • Diagnostic Logging
  • Preserved Channels
  • Running Min/Max, Timers, PID Control, Engine Log
  • Supports T2 Telemetry (Optional)
  • 3 x Composite video inputs for live on-screen video, e.g. from a rear view camera
  • IP67 rated housing and diffused LED lights


SPECIFICATIONS
Display
  • Screen: Colour TFT LCD, anti-reflective
  • Resolution: 800 x 480 resolution, anti-aliased graphics
  • Layouts: selectable fixed layouts (user programmable layouts via optional Display Creator software)
  • 48 user-defined, scrollable message lines with programmable overrides
  • 3 programmable modes with customisable labels
Logging
  • 250 MB internal logging memory
  • Optional USB logging to a removable storage device
    • Includes upgrade to 500MB internal memory
  • Logging rates up to 1000 samples per second
  • Fast Ethernet download
  • i2 Standard data analysis software included (Pro Analysis upgrade available)
Removable USB Storage Device Options
  • Kingston 32 GB USB3 Flash Drive - fast, low weight and low cost, not mechanically latched or waterproof.
  • MoTeC 32 GB USB3 Data Plug - mechanically latched, waterproof with anodised housing, ideal for exposure to the elements and vibration.
  • Alternative USB storage devices may be used but are not recommended.
Inputs
(*Denotes number available with I/O upgrade)
  • 10 (20*) analogue voltage inputs:
    • 4 (8*) 0 to 5.46 V, 1.33 mV resolution
    • 6 (12*) x 0 to 15.0 V, 3.66 mV resolution
  • 4 (8*) Analogue temperature inputs
    • 0 to 15.0 V, 3.66 mV resolution
  • 4 x Digital inputs
  • 2 x Switch inputs
  • 4 x Speed inputs
  • 3 x Composite video inputs
Outputs
  • 6 x low side outputs PWM or switched operation
  • 1.0 Amp max, current limited and thermal overload protected
Expanders
  • Compatible with E816, E888, VIM and SVIM Expanders.
Internal Sensors
  • 3-axis accelerometer, detection range: +/- 5G
  • Dash temperature sensor
  • Sensor supply voltage
  • Battery voltage
Communications
  • 4 x configurable CAN buses, with individually programmable CAN bus speeds. One can be used as RS232 Receive. Two buses support VIM/SVIM Expanders.
  • 2 x Dedicated RS232 ports.
Power supply
  • Operating voltage: 6 to 32 V DC
  • Operating current: 0.5 A typical at 14 V (excl. sensor currents)
  • Reverse battery protection
  • Battery transient protection
Sensor supply currents
  • 5 V sensor supply: 0.25 A maximum
  • 8 V sensor supply: 0.25 A maximum
Operating temperature
  • Internal: -20 °C to 70 °C (above 60 °C maximum backlight brightness progressively reduced)
  • Typical ambient temperature range in free air: -20 °C to 55 °C
Ingress Protection (IP) Rating
  • The device is rated to IP67


IP rating is dependant upon the user ensuring that the connector entries are waterproof, which, as a minimum, requires all unused wire cavities on the connector to be plugged.

Physical
For size and weight of P/N 18051 please refer to CDS18051 Click here.
  • Size: 196.2 x 122.5 x 26.3 mm excluding connectors
  • Weight 755 g
  • 1 x 79 pin Autosport connector
  • 1 x mini USB port (located on the back of the device)
