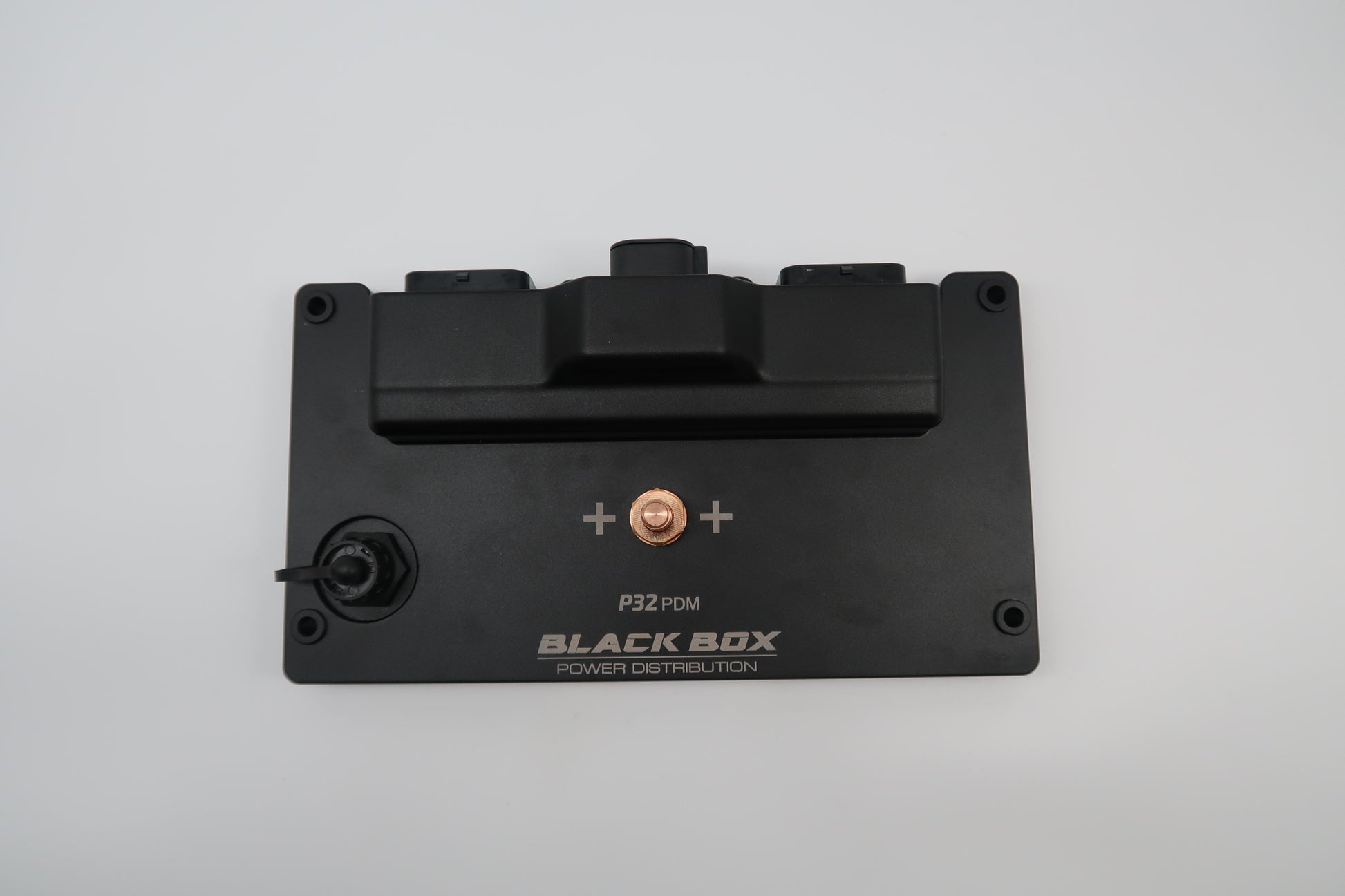

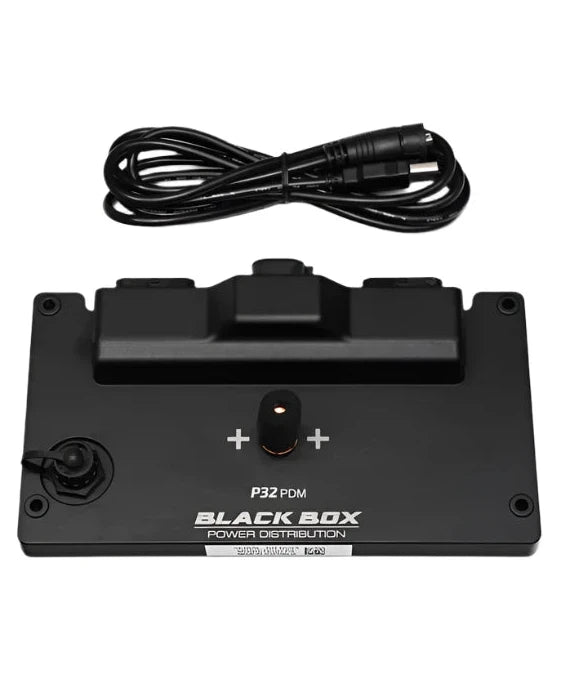

Black Box P32

Features

· 32 high side output channels plus 2 Auxiliary low side outputs.
· 4 x 27 Amp high frequency PWM. 2 x 22 Amp high frequency PWM. 24 x 8 Amp.
· 25 wired switch inputs. Including 3 that can be used as temperature sensor inputs.
· Programmable output current, fuse reset time and allowable fuse reset count.
· Compatible with 24 volt systems.
· Programmable functions including True, False, AND, OR, Flash, Pulse Train, PWM ramp,
· Two separate CAN buses that can be configured to read and send data from ECU (engine control unit)
dashboards, keypads and other PDMs. With internal switchable CAN bus terminator resistor.
· Wiper motor control with brake.
· Cable and USB connectors are sealed. Cable connectors have gold plated terminals.
