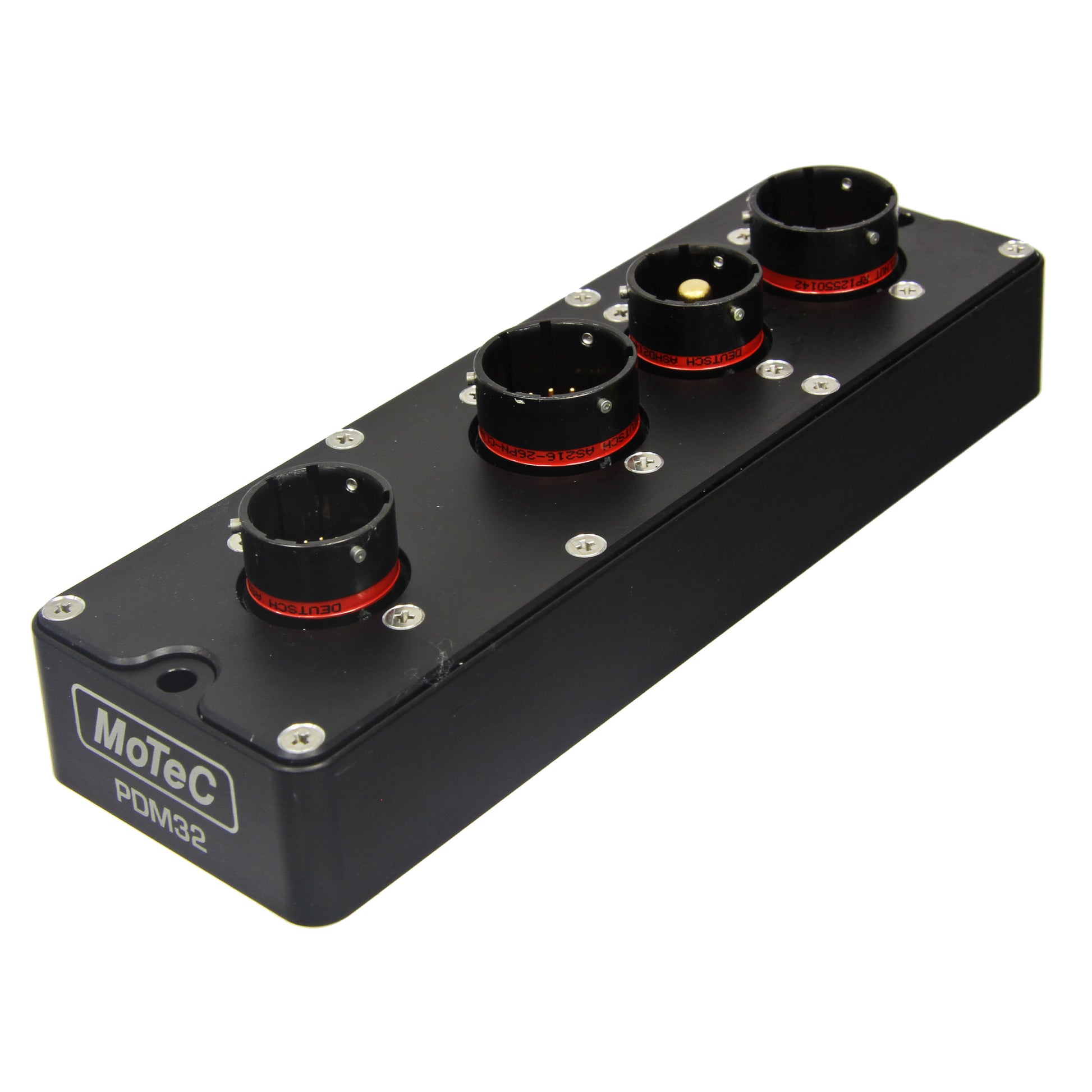

MoTeC PDM32

MoTeC PDM32

$5,980.00 NZD
$5,980.00 NZD
Sale Sold out
Shipping calculated at checkout.
Inputs
  • 2323 x switch inputs: range 0 to 51 V, resolution 0.2 V
Outputs
  • 8 x 20 A outputs: 20 A continuous, 115 A transient (typical)
  • 2424 x 8 A outputs: 8 A continuous, 60 A transient (typical)
Communications
  • 1 x CAN
Operating Voltage
  • 30 V max
Ingress Protection (IP) Rating
  • Rubber seal on lid and connectors, conformal coating on PCB
  • The device is rated to IP67



Physical
  • 1 x 37, 1 x 26, 1 x 8 and 1 x 1 pin Autosport connectors
  • Case size 180 x 60 x 28 mm
  • Weight 420 420 grams
