MR Electronics 12 Button CAN Steering Panel - Encoder

The MR Electronics CAN Steering Panel (CSP) streamlines your steering wheel, replacing complex switches & wiring with a single, intelligent interface. Take command of your vehicle's critical functions with 12 programmable buttons, designed for the demanding environment of motorsport.

Key Features

12 Programmable Buttons

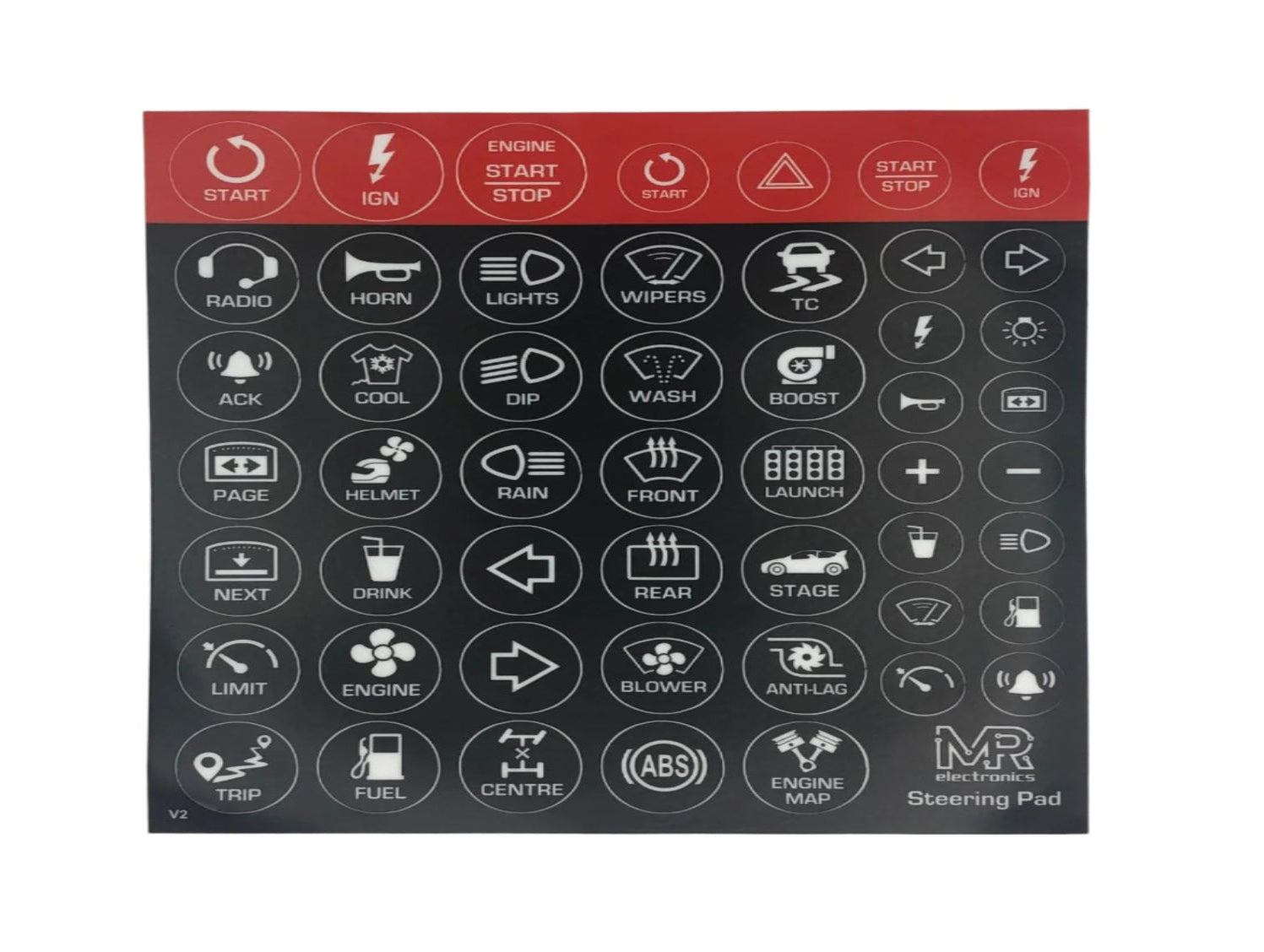

Fully customizable to control functions like pit limiters, radio, traction control, and more. Comes with over 50 function labels to create your perfect layout, or print your own for those really bespoke installs.

LED Outputs

Each button has an RGB LED that can show 7 different colours. Useful for displaying status information.

CAN Communications

The CSP uses standard CANOpen communication, with a range of baud rates, making it plug & play compatible with many standard keypads (Grayhill / MoTeC & BlinkMarine / Link). The CAN protocol is highly configurable making it also compatible with any other devices that support CAN-bus communication.

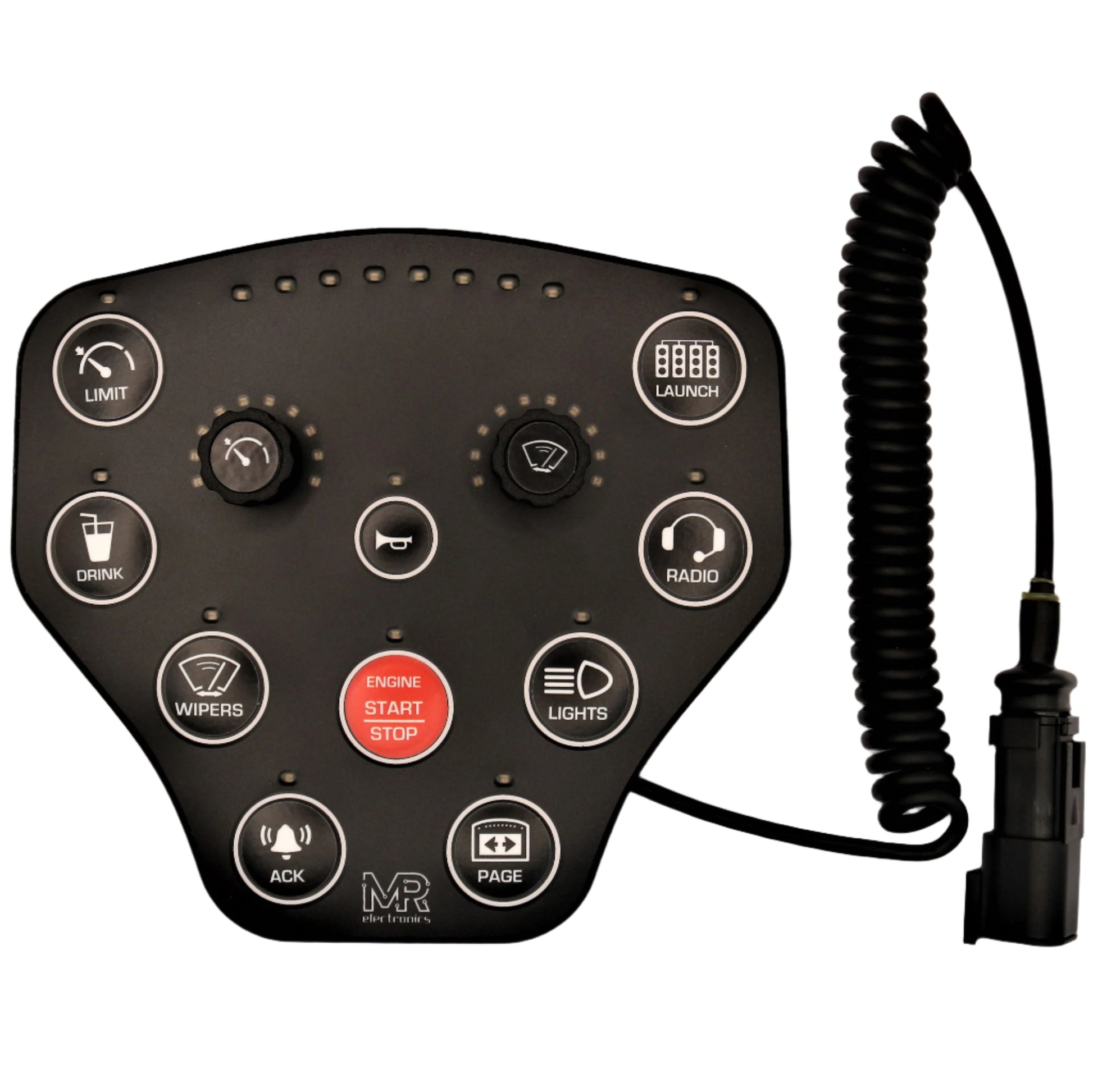

Encoder Model

For the ultimate in control and functionality. Including all the standard features plus:

Dimmable Backlight

Adds a dimmable white backlight for clear visibility in all lighting conditions. Brightness is easily controlled via a CAN message.

8 RGB LED Shift Light

With three different modes, LEDs can be controlled:

• • like the other button LEDs for status indicators, or
  • as a 5 stage shift light with custom patterns, based on an external RPM signal present on the same CAN bus, or
  • when used together with a MoTeC product, the LEDs can be set up to behave like a MoTeC SLM.

Two Rotary Encoders

Each with up to 10 configurable LED indicators, perfect for adjusting settings like traction control, ABS, wiper speed etc. LED colours, directions, and output bounds can all be configured to suit the application.

Alternate Encoder

A second alternate encoder can be set up on the same physical encoder, adding two additional adjustments, switching between modes with a simple press.
