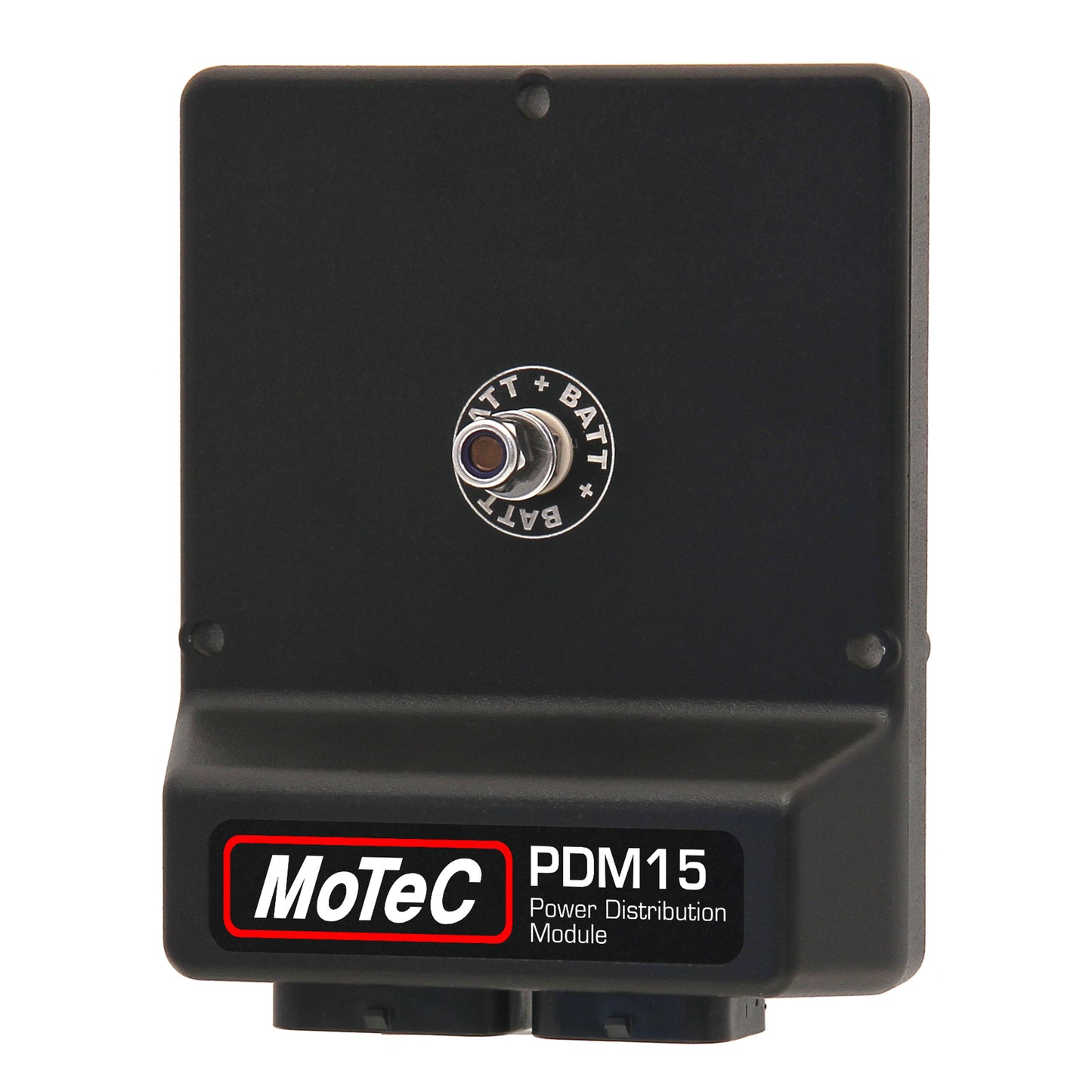

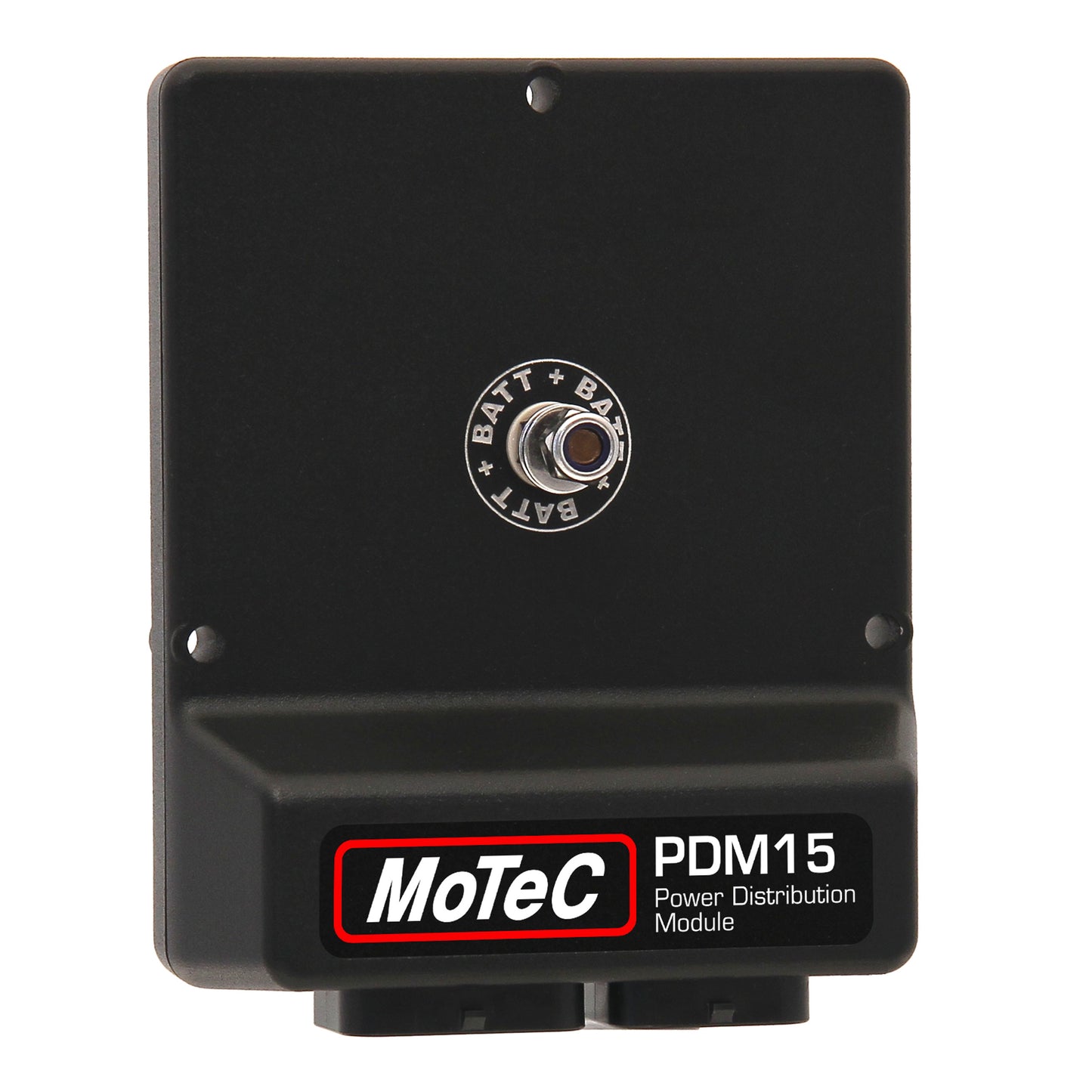

MoTeC PDM15

Inputs

• 16 x switch inputs: range 0 to 51 V, resolution 0.2 V

Outputs

• 8 x 20 A outputs: 20 A continuous, 115 A transient (typical)
• 7 x 8 A outputs: 8 A continuous, 60 A transient (typical)

Communications

• 1 x CAN

Operating Voltage

• 30 V max

Ingress Protection (IP) Rating

• Conformal coating on PCB

Physical

• 1 x 34 and 1 x 26 pin waterproof connectors, 1 x M6 stud
• Case size 107.5 x 127.5 x 38.7 mm

• Weight 260 260 gram
